MAK EV CARGO
.jpg)
Posted on Sep 08,2022 16:07 PM
Description

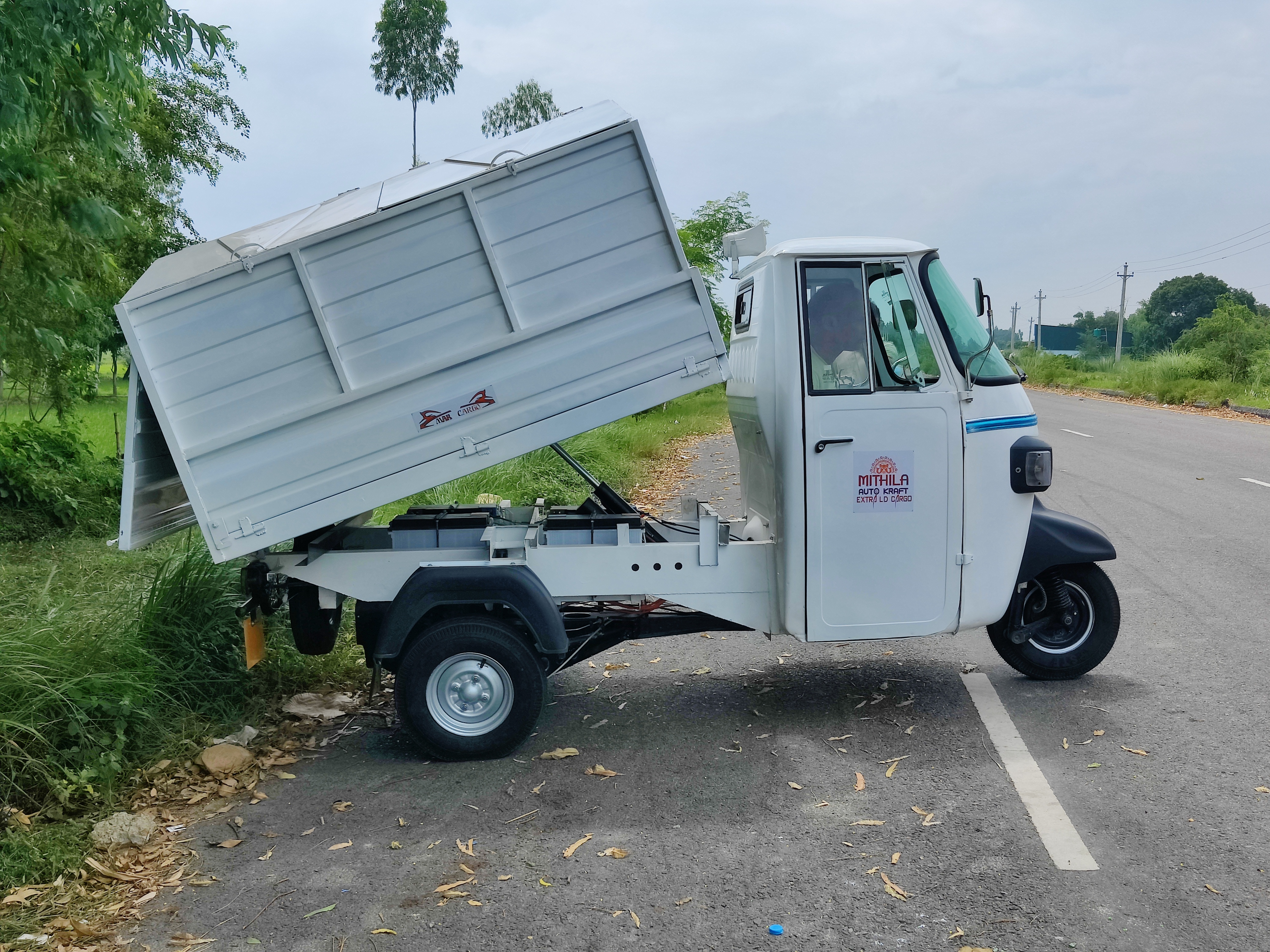

A 3-wheeler hydraulic electric vehicle (EV) cargo garbage is a sustainable, compact solution designed for street garbage collection and disposal in urban areas. It helps reduce emissions and noise pollution, making it ideal for environmentally conscious waste management. The vehicle features a hydraulic lift system for easy and efficient loading and unloading of garbage and waste materials. Its compact size and three-wheel design allow for enhanced maneuverability, making it perfect for navigating narrow streets, alleys, and congested areas while ensuring efficient waste collection.
Technical Specification
| Model | MAK E-Cargo/Garbage |
|---|---|
| Vehicle Type | Hydraulic 3 Wheel EV Cargo Garbage |
| Chassis and Frame | Heavy Duty Metal Frame |
| Unloading Facility | Hydraulic |
| Gauges and Indicator | Speedometer, Odometer Gauge, Battery Level Indicator |
| Seating Capacity | Driver Only |
| Battery | |
| Type, Voltage | LiFePo4, 72V |
| Capacity | 9.2 Kwh |
| Life Cycle | 2500 Cycles @ 80% DOD |
| Motor | |
| Rated Power | 5 kW |
| Peak Power | 10 kW |
| Rated RPM | 3500 |
| Torque | 75 Nm |
| Transmission | |
| Type | Manual with 2 Forward and 1 Reverse, Floor Mounted Engaged Through Control at Driver Seat. |
| Suspension and Brakes | |
| Front Suspension | Coil Spring and Shock Absorber |
| Rear Suspension | Shock Absorber |
| Steering | Handel Bar Type |
| Brake (Front + Rear) | Hydraulically Actuated Drum Brake |
| Tyre and Size | Standard Radial Size (4-50-10) |
| Vehicle Dimension | |
| Wheelbase | 2170 mm |
| Overall Width | 1470 mm |
| Overall Length | 3200 mm |
| Overall Height | 1740 mm |
| Ground Clearance | 225 mm @ center of the axle |
| Cargo Box (Boot Space) Dimension (L*B*H) | 1730mm * 1470mm * 960 mm |
| Weights | |
| Gross Vehicle Weight | 630 kg |
| Loading Capacity | 900 kg |
| Performance | |
| Top Speed | 45 km/hour |
| Mileage/Range on Full Charging | 80 km |
| Charging Duration | 4-5 hours |
